Sometime in spring 2008
In the next year or so I intend to build a wooden backyard observatory on a concrete base with a concrete pier.
The roof will be a roll-off type. I also plan to make a warm-room because mainly I will be doing astrophotography.
So, here goes...

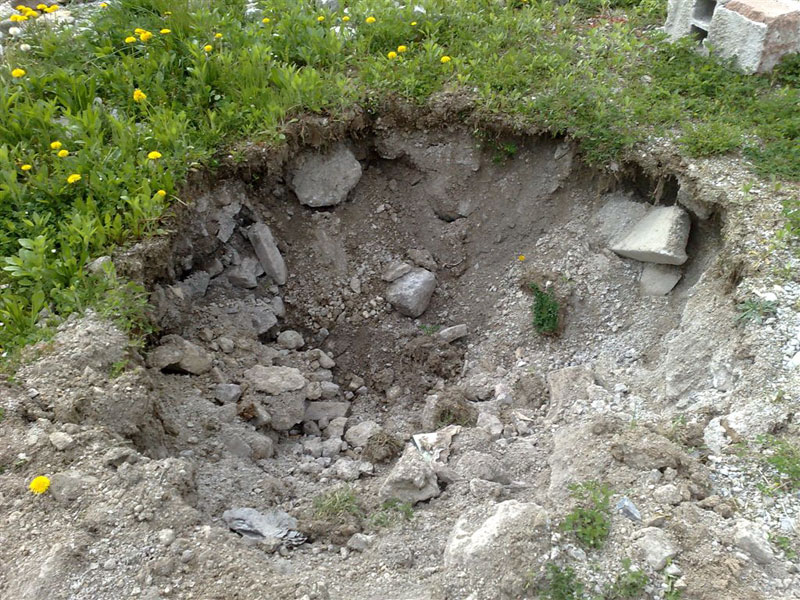

22 May 08 - First digg a big hole in the ground

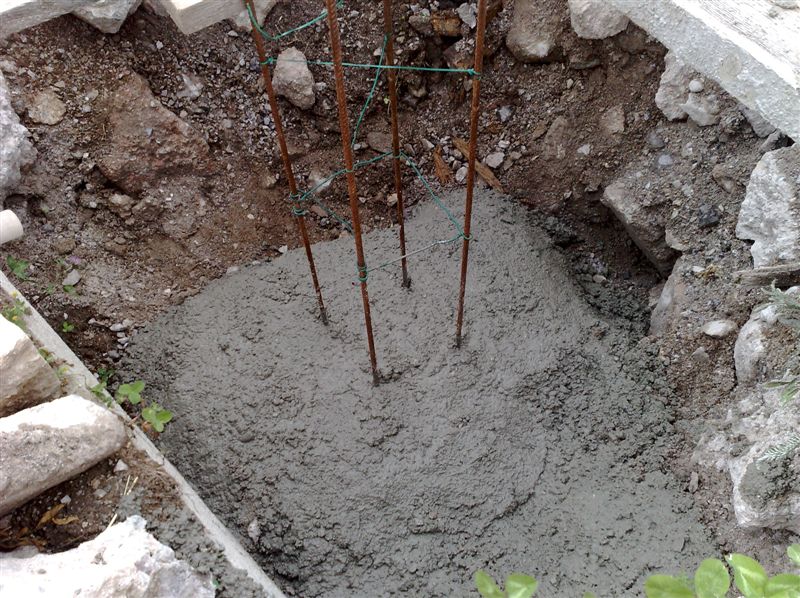

4 July 08 - I poured a relatively small concrete footer

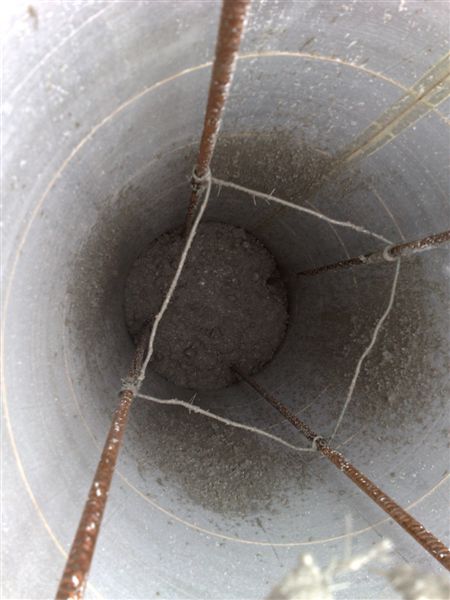

After the footer dried a bit I filled the tube with a bit finer mixture,

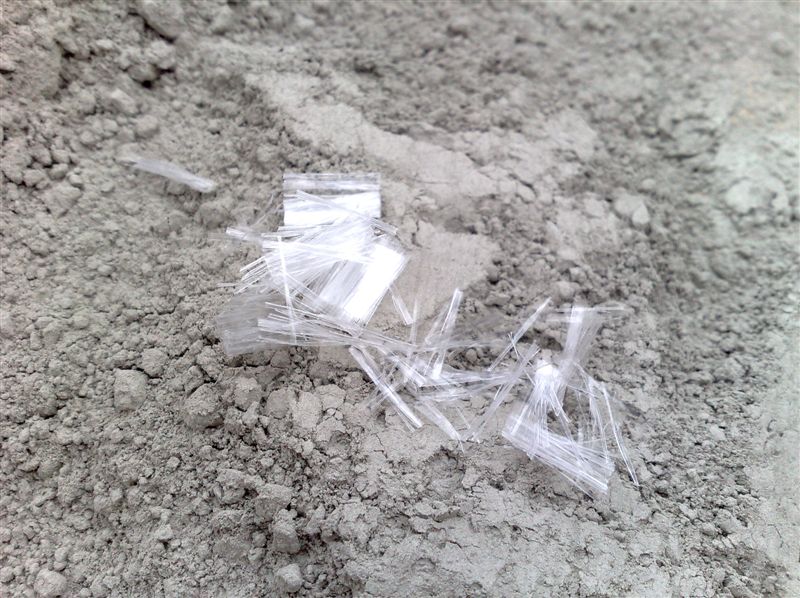

added some glass fibre for additional strength and stiffness

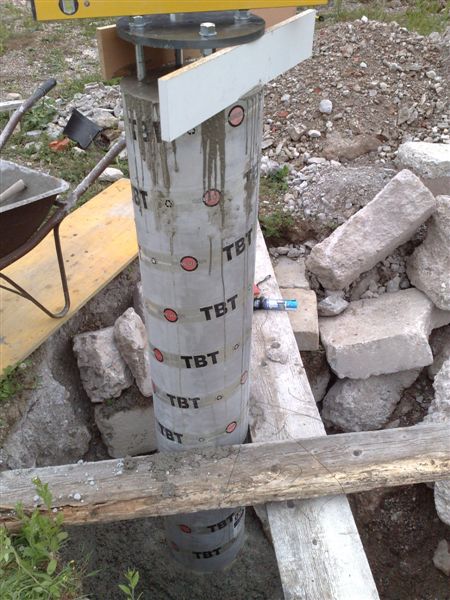

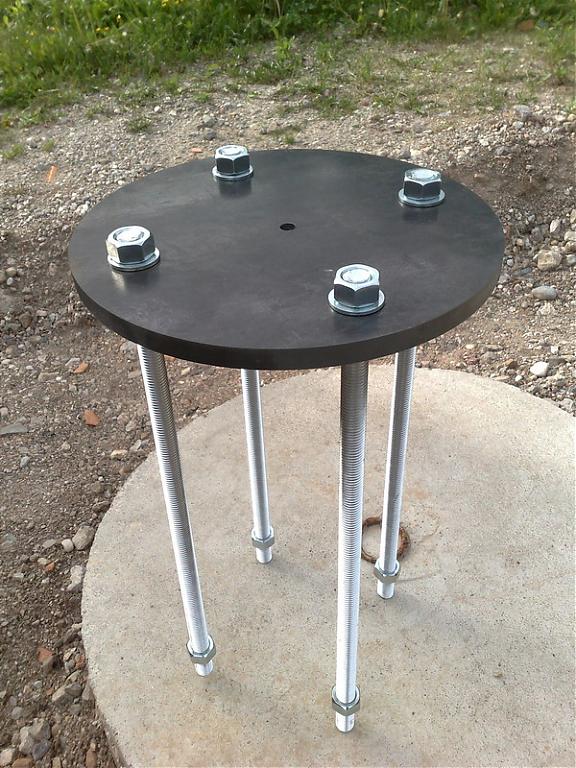

Steel adapter plate on four threaded rods
The tube filled and the plate inserted

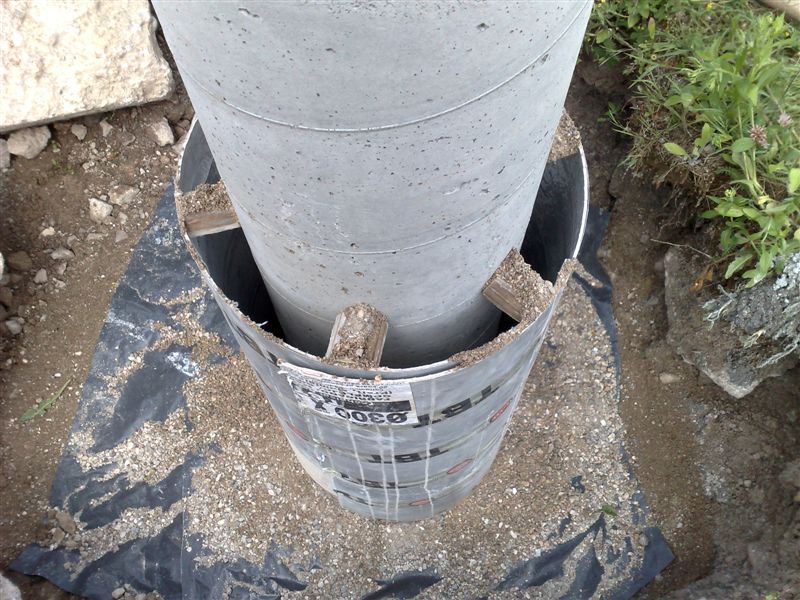

07 July 08 - Before filling up the hole with sand, earth and rocks I made additional isolation layer and filled it with fine sand.

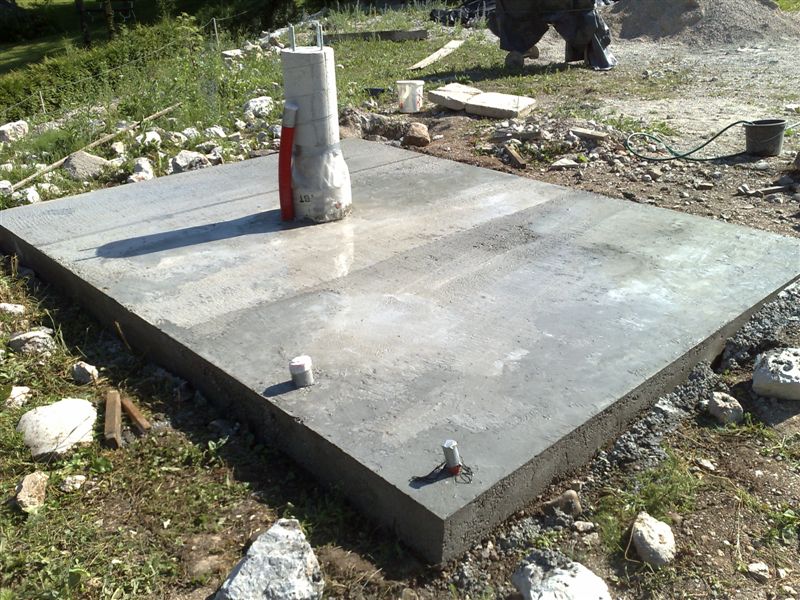

21 July 08 - Concrete base finished

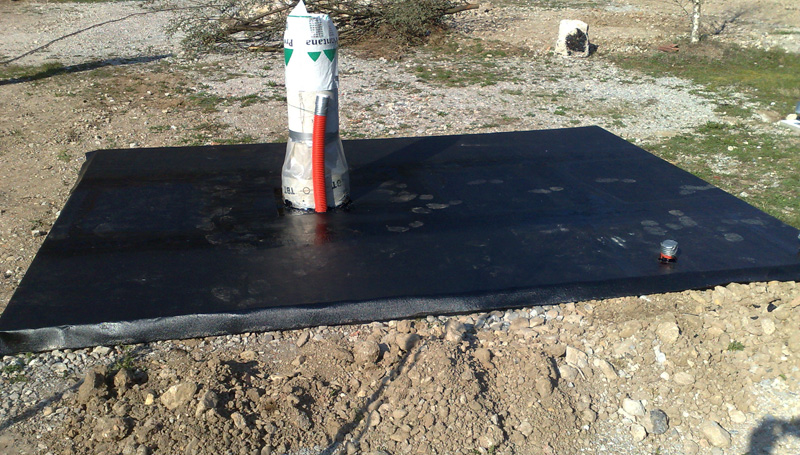

11 April 09 - Hydroinsulation

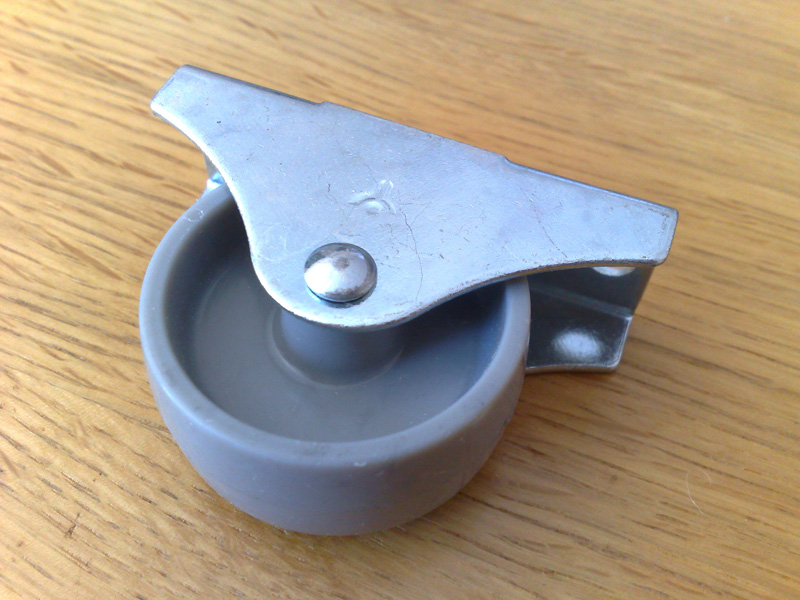

There will be 30 wheels like this holding the roof. Each one can hold 45kg.
